Filtering bags in thermofamed polyester staple with a weight of 100g / mq - 150g / mq - 200g / mq - 250g / mq.

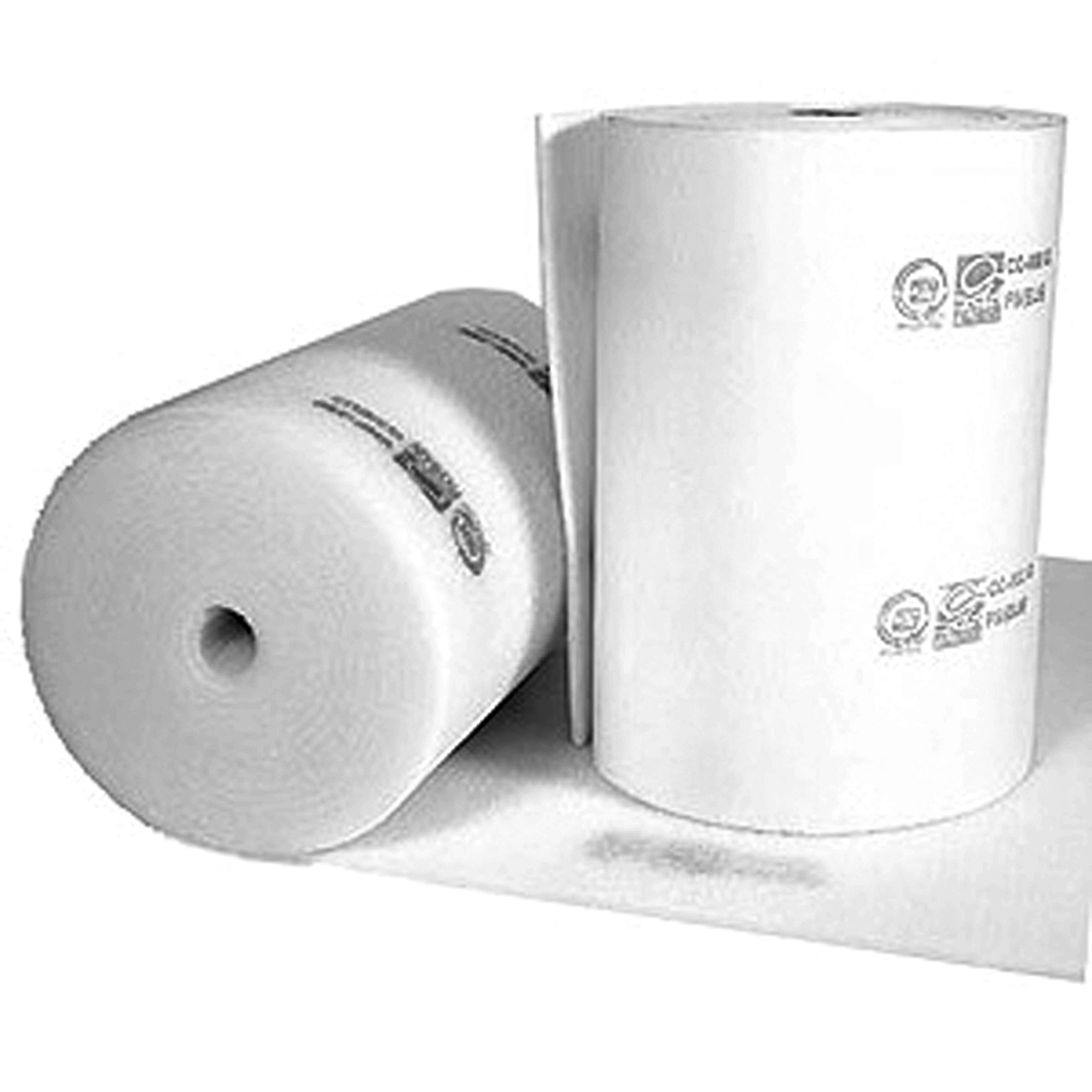

Material : roll of mat in 100% polyester.
Variable density fibers arrangement to increase dust accumulation capacity.
Air treatment units, prefiltration in high-efficiency filters, civil and industrial conditioning and heating.
Rolls 0,5 - 1 - 1,5 m height on request, panels of any size.
For height 0,5 m, minimum order of 2 rolls.
weight | roll dimensions |
100 g/m2 | h 2 x 30 m |
150 g/m2 | h 2 x 30 m |
200 g/m2 | h 2 x 30 m |
250 g/m2 | h 2 x 25 m |
Pa : pressure drop in Pascal
Caratteristiche tecniche e limiti di impiego |
peso 100 g/m2 |
peso 150 g/m2 |
peso 200 g/m2 |
peso 250 g/m2 |
EN ISO 16890:2016 | ISO COARSE | ISO COARSE | ||
CLASSE di efficienza (CEN EN779-2012): | G2 | G3 | G4 | G4 |
EFFICIENZA gravimetrica media: | 70% | 80% | 90% | 90% |
GRAMMATURA tessuto filtrante: | 100 g/m2 | 150 g/m2 | 200 g/m2 | 250 g/m2 |
SPESSORE: | 10 mm | 14-16 mm | 20-22 mm | 22-24 mm |
TEMPERATURA massima di impiego: | 100°C | 100°C | 100°C | 100°C |
UMIDITA' relativa: | 100% | 100% | 100% | 100% |
PERDITA DI CARICO iniziale: | 21Pa | 26Pa | 43Pa | 43Pa |
PERDITA DI CARICO finale consigliata: | 250Pa | 250Pa | 250Pa | 250Pa |
PERDITA DI CARICO massima: | 400Pa | 400Pa | 400Pa | 400Pa |
CAPACITA' DI RACCOLTA polvere: | 180 g/m2 | 235 g/m2 | 351 g/m2 | 470 g/m2 |
VELOCITA' frontale consigliata: | 1,5 m/s | 1,5 m/s | 1,5 m/s | 1,5 m/s |
REAZIONE al fuoco (DIN53438/3): | classe F1 | classe F1 | classe F1 | classe F1 |
NF-F-16-101: | M1 | M1 | M1 | M1 |
