EDLSV - EDLSVB Hidden linear diffusers
Description
Concealed linear diffusers for vmc systems with a 30 mm slot with an aerodynamic aluminium profile and adjustable deflectors for optimal air throw control.
Features
Materiale: alluminium.
Finishing: EDLSV: painted black Ral 9005
Finishing: EDLSVB: painted white Ral 9016
Slot: 30 mm.
Installation: by means of a plenum box with a bridge assembly system. Placement of anti-crack tape on the frame and subsequent plaster skimming.
Dimensions avaible:
- Lenght 500 mm;
- Lenght 800 mm.
Use
Diffuser suitable for air-supply or return in residential and commercial environments.
Models
-EDLSV - EDLSVB hidden linear diffusers with deflectors (supply) 30 mm slot.
Accessories
-isolated plenum;
-fixing bridges.
Hidden linear diffusers dimensions
Dimensions are expressed in mm
| L | A | B | C | E | D | number of fixing bridges |
| 500 | 70 | 65 | 58 | 51 | 90 | 2 |
| 800 | 2 |

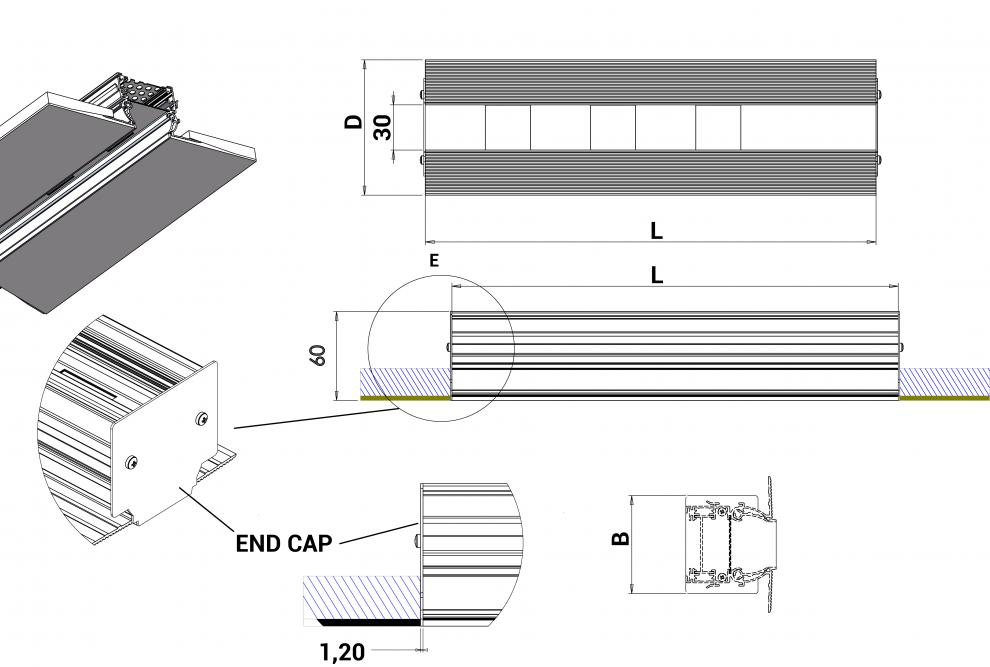

Diffuser dimensional details
Operating data
Data referring a terminal throw velocity Vt = 0.25 m/s and with a temperature differential of 10/12°C in ceiling insallation and side air throw.
Operation data concerning to diffuser without damper or with open sliding damper.
Operation data concerning to diffuser with deflectors in working position with 50% reduction of the effective air passage surface.
The position of the deflectors reduce the effective section. When the deflectors are open or in return mode, the air flow (m³/h) could be increased.
Vk: effective speed (m/s)
m³/h: air flow
Pa: pressure drop in Pascal
L(m): air throw in meters
dB(A): noise level
| Length EDLSVMC-EDLSVMCB | Effective section m² | Air flow and throw | ||||||
| 500 mm | 0,0073 | m³/h | 52 | 79 | 105 | 132 | 158 | 184 |
| L(m) | 1,6 | 2,5 | 3,4 | 4,2 | 6 | 5,8 | ||
| 800 mm | 0,0116 | m3/h | 83 | 125 | 167 | 208 | 250 | 292 |
| L(m) | 1,6 | 2,5 | 3,4 | 4,2 | 5 | 5,8 | ||
| Vk | m/s | 2 | 3 | 4 | 5 | 6 | 7 | |
| pressure drop | Pa | 8 | 15 | 26 | 40 | 55 | 70 | |
| noise index | dB(A) | <20 | 22 | 32 | 37 | 44 | 48 | |
Features air throw
Plenum dimensions and mounting system with fixing bridges
PLENUM EPLS 500 including 2 sleeve type A Ø 63mm
PLENUM EPLS 800 including 3 sleeve type A Ø 63mm
Damper type C and sleeve type B Ø 75mm optional to be purchased separately.
