Description

Plenum box made of molded polystyrene with a density of 45 kg/mc, class 1 fireproof and internally crystallized. The transformation process combines the characteristics of the material to make the plenum a compact and light.

Features

Above mentioned plenum peculiarities, combined with its trapezoidal shape, allow installation after false ceiling is completed, facilitating both the construction and maintenace of the system EPSP plenum has an excellent thermo-acoustic insulation, therefore, it does not require the application of additional insulating materials.

Installation

Thanks to its lightness, the plenum box is laid on the structure of the false ceiling, eliminating the need of suspensions for fixing it to the same.

This gives a significative advantage of reducing assembly times and saving the space occupied by over 50% compared to a traditional plenum.

Use

Designed for use with diffusers on panels with nominal dimensions 300x300, 400x400, 500x500 and 600x600. The plenum is supplied without the hose connection.

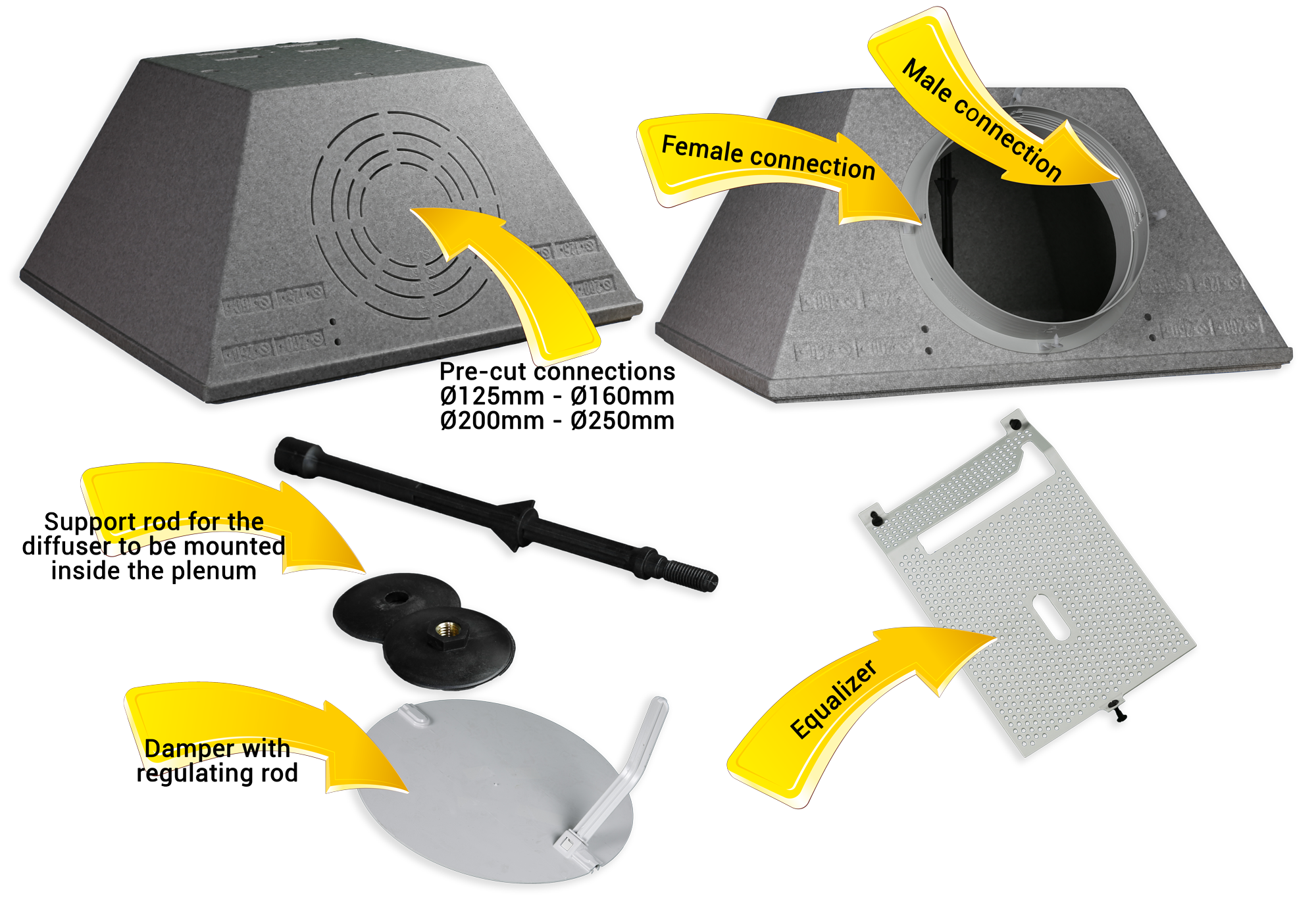

Accessories

  • EQU-A - Equalizer
  • MCA - Coupling in ABS
  • SER-A - Damper for coupling MCA

On demand

Damper on the fitting complete with control lever for flow adjustment and equaliser.

Dimensions

ModelsAvailable connections ØNDimensions (mm)
ØN1ØN2ØN3EFH
EPSP 300x300125160 290181225
EPSP 400x400125160200390239255
EPSP 500x500125160200490275255
EPSP 600x600160200250590320311

Plenum and accessories

Price list

DescriptionEuro
Plenum box in molded polystyrene EPSP 300x300 fireproof class 1 complete with mounting bridge and screw M627,83
Plenum box in molded polystyrene EPSP 400x400 fireproof class 1 complete with mounting bridge and screw M637,77
Plenum box in molded polystyrene EPSP 500x500 fireproof class 1 complete with mounting bridge and screw M645,45
Plenum box in molded polystyrene EPSP 600x600 fireproof class 1 complete with mounting bridge and screw M659,38

Accessories

Description
EQU-A - Equalizer per EPSPEurMCA - Coupling in ABSEurSER-A - Damper for Coupling MCAEur
EQU-A 300X30014,86 MCA Ø1259,94  SER-A Ø1253,58
EQU-A 400X40017,58 MCA Ø16011,32  SER-A Ø1603,58
EQU-A 500X50019,85 MCA Ø20011,62  SER-A Ø2004,56
EQU-A 600X60013,21 MCA Ø25012,69  SER-A Ø2505,87
