SC Regulation damper for air jets and grilles
Description

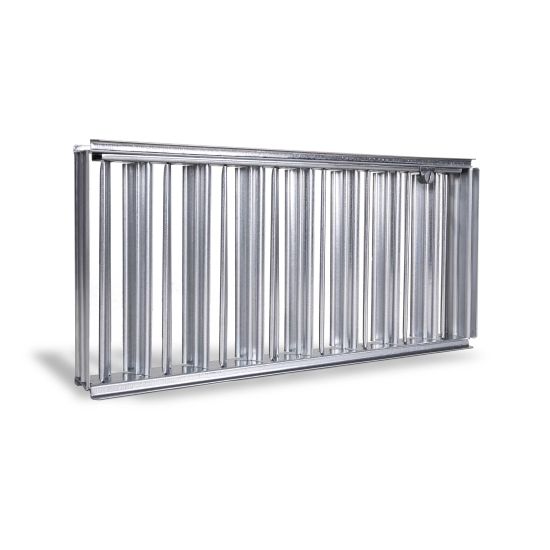

Galvanised steel regulation dampers with blades with opposing movement suitable for air jets and grilles.
Characteristic
Maximum dimensions L x H for construction in one piece 1000 mm x 600 mm. They are installed directly on the neck of the air jet or grille.
Use
Accessory compatible with EDC - EDQ series diffusers, EBA - EBCV - EBV - EBL - EBLS series air jets and EGA - EGQ - EGQR - EGF - EGFR series grilles.
Price List
SC - Volume Damper H L 200 300 400 500 600 800 1000 1200 Eur Eur Eur Eur Eur Eur Eur Eur 100 14,15 15,41 18,44 22,01 25,18 31,65 38,83 50,35 150 15,61 18,06 21,28 24,64 28,08 35,96 43,34 56,15 200 17,10 23,98 26,32 30,92 35,62 43,65 48,71 71,24 300 23,98 29,76 36,84 40,56 44,34 53,79 64,85 88,67 400 26,32 36,84 42,19 50,96 54,78 67,03 79,54 109,56 500 30,92 40,56 50,96 65,57 68,36 81,30 102,61 136,73 600 35,62 44,34 54,78 68,36 81,41 98,17 122,80 162,82 800 43,65 53,79 67,03 81,30 98,17 134,05 159,08 196,33 1000 48,71 64,85 79,54 102,61 122,80 159,08 205,43 245,61
